Macros!

CIS 198 Lecture 7

1 / 47

What Are Macros?

  • In C, a macro looks like this:

    #define FOO 10 // untyped integral constant
    #define SUB(x, y) ((x) - (y)) // parentheses are important!
    #define BAZ a // relies on there being an `a` in context!
    int a = FOO;
    short b = FOO;
    int c = -SUB(2, 3 + 4);
    int d = BAZ;
  • Before compilation, a preprocessor runs which directly substitutes tokens:

    int a = 10; // = 10
    short b = 10; // = 10
    int c = -((2) - (3 + 4)); // = -(2 - 7) = 5
    int d = a; // = 10
2 / 47

Why C Macros Suck;

  • C does a direct token-level substitution.

    • e.g. 3+4 has the tokens '3' '+' '4'.
    • The preprocessor has no idea what variables, types, operators, numbers, or anything else actually mean.
  • Say we had defined SUB like this:

    #define SUB(x, y) x - y
    int c = -SUB(2, 3 + 4);
3 / 47

Why C Macros Suck¹

  • C does a direct token-level substitution.

    • e.g. 3+4 has the tokens '3' '+' '4'.
    • The preprocessor has no idea what variables, types, operators, numbers, or anything else actually mean.
  • Say we had defined SUB like this:

    #define SUB(x, y) x - y
    int c = -SUB(2, 3 + 4);
  • This would break terribly! After substitution...

    int c = -2 - 3 + 4; // = -1, not 5.

¹ GCC Docs: Macro Pitfalls

4 / 47

Why C Macros Suck

  • Or if we directly used a variable name in a macro...

    #define FOO 10
    #define BAZ a // relies on there being an `a` in context!
    int a_smith = FOO;
    int d = BAZ;
  • Now, the preprocessor produces this invalid code...

    int a_smith = 10; // = 10
    int d = a; // error: `a` is undeclared
5 / 47

Why C Macros Suck

  • C macros also can't be recursive:

    #define foo (4 + foo)
    int x = foo;
  • This expands to

    int x = 4 + foo;
    • (This particular example is silly, but recursion is useful.)
6 / 47

C Macro Processing

  1. Lexing: source code to token stream
    #define FOO 4
    3+FOO
    • '#define' 'FOO' '4'
    • '3' '+' 'FOO'
  2. Preprocessor: macros are expanded.
    • '3' '+' 'FOO' => '3' '+' '4'
  3. Tokens are processed into an AST

  4. Rest of compilation

    • syntax checking, type checking, etc
7 / 47

Rust Macros

  • A Rust macro looks like this:

    macro_rules! incr { // define the macro
    // syntax pattern => replacement code
    ( $x:ident ) => { $x += 1; };
    }
    let mut x = 0;
    incr!(x); // invoke a syntax extension (or macro)
8 / 47

AST

  • An AST (abstract syntax tree) contains semantic information about what kind of operation the syntax represents.

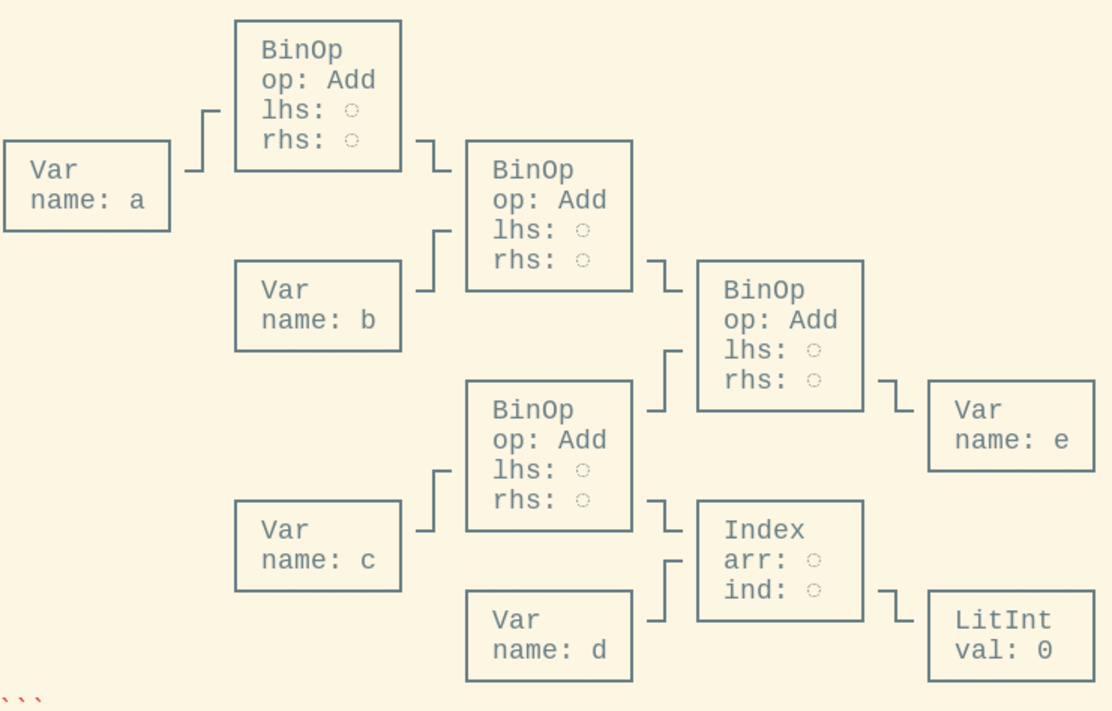

  • a + b + ( c + d [ 0 ] ) + e parses into the AST

9 / 47

Token Trees

  • In Rust, the lexer produces token trees:
    • An intermediate between token streams and ASTs.
    • Only represents brace-based nested structures ('(', '[', '{').
  • a + b + ( c + d [ 0 ] ) + e parses into the token stream
    • 'a' '+' 'b' '+' '(' 'c' '+' 'd' '[' '0' ']' ')' '+' 'e'
  • Which then parses into the token tree

10 / 47

Macro Rules

  • Put simply, a macro is just a compile-time pattern match:

    macro_rules! mymacro {
    ($pattern1) => {$expansion1};
    ($pattern2) => {$expansion2};
    // ...
    }
  • e.g. this four! macro is super simple:

    macro_rules! four {
    // For empty input, produce `1 + 3` as output.
    () => {1 + 3};
    }
    • Matches on no patterns, and always expands to { 1 + 3 }.
11 / 47

Macro Expansion

let eight = 2 * four!();

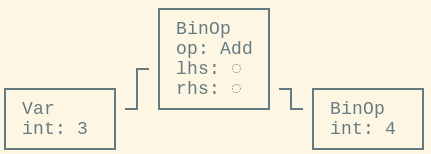

  • This parses into the following AST:

12 / 47

Expansions

  • Translated into Rust syntax, this looks like:
let eight = 2 * (1 + 3);

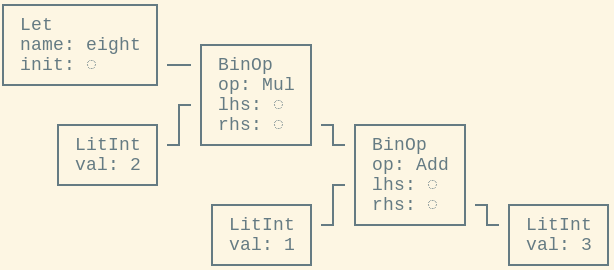

  • With this AST:

13 / 47

Example: Try!

https://is.gd/oMi3j

14 / 47

Entire Process

  1. Lexing: Source code to token stream to token tree
  2. Parsing: Token tree to AST
    • Macros are each a single AST node which contain a token tree
  3. Macro expansion:
    • Macro AST nodes replaced by their expanded AST nodes
  4. Rest of compilation (type checking, borrow checking, etc)
  • Thus, macros must output valid, contextually-correct Rust.
    • Enforced because AST context is already known when expansion takes place.
15 / 47

Expansions

  • Macro calls can appear in place of the following syntax kinds, by outputting a valid AST of that kind:

    • Patterns (e.g. in a match or if let).
    • Statements (e.g. let x = 4;).
    • Expressions (e.g. x * (y + z)).
    • Items (e.g. fn, struct, impl, use).
  • They cannot appear in place of:

    • Identifiers, match arms, struct fields, or types.
16 / 47

Macro Rules

  • Any valid Rust tokens can appear in the match:

    macro_rules! imaginary {
    (elevensies) => {"20ton"};
    }
    imaginary!(elevensies);
    imaginary!(twentington);
  • In Rust, macros see one token tree as input.

    • When you do println!("{}", (5+2)), the "{}", (5+2) will get parsed into a token tree, but not fully parsed into an AST.
  • The token tree can have any set of braces:

    macro_rules! imaginary {
    (elevensies) => {"20ton"};
    }
    imaginary![elevensies];
17 / 47

Captures

  • Portions of the input token tree can be captured:

    macro_rules! sub {
    ($e1:expr, $e2:expr) => { ... };
    }
  • Captures are always written as $name:kind.

    • Possible kinds are:
      • item: an item, like a function, struct, module, etc.
      • block: a block (i.e. { some; stuff; here })
      • stmt: a statement
      • pat: a pattern
      • expr: an expression
      • ty: a type
      • ident: an identifier
      • path: a path (e.g. foo, ::std::mem::replace, ...)
      • meta: a meta item; the things that go inside #[...]
      • tt: a single token tree
18 / 47

Captures

  • Captures can be substituted back into the expanded tree

    macro_rules! sub {
    ( $e1:expr , $e2:expr ) => { $e1 - $e2 };
    }
  • A capture will always be inserted as a single AST node.

    • For example, expr will always mean a valid Rust expression.
    • This means we're no longer vulnerable to C's substitution problem (the invalid order of operations).
    • Multiple expansions will still cause multiple evaluations:
    macro_rules! twice {
    ( $e:expr ) => { { $e; $e } }
    }
    fn foo() { println!("foo"); }
    twice!(foo()); // expands to { foo(); foo() }: prints twice
19 / 47

Repetitions

  • If we want to match a list, a variable number of arguments, etc., we can't do this with the rules we've seen so far.
  • Repetitions allow us to define repeating subpatterns.
  • These have the form $ ( ... ) sep rep.
    • $ is a literal dollar token.
    • ( ... ) is the paren-grouped pattern being repeated.
    • sep is an optional separator token.
      • Usually, this will be , or ;.
    • rep is the required repeat control. This can be either:
      • * zero or more repeats.
      • + one or more repeats.
  • The same pattern is used in the output arm.
    • The separator doesn't have to be the same.
20 / 47

Repetitions

  • Takes a space-delimited list and prints each element.
macro_rules! repeat {
( $( $elem:expr )-* ) => {
$( println!("{}", $elem) );*
}
}
repeat!(1 2 3);
21 / 47

Notice you can insert a separator in the repetition- expansion (although in this case it can go inside the expanded-expressoin as well)

Exercise! vec

  • Implement vec!
    • Takes zero-or-more elements and inserts them into a vector.
macro_rules! vec! {
// ...
}
22 / 47

Exercise! vec

macro_rules! vec {
( $( $elem:expr ),* ) => {
{ // Braces so we output only one AST (block kind)
let mut v = Vec::new();
$( // Same syntax to expand a repetition
v.push($elem); // Expands once for each input rep
) * // No sep; zero or more reps
v // Return v from the block.
}
}
}
println!("{:?}", vec![3, 4]);
23 / 47

Exercise! vec

  • Condensed:
macro_rules! myvec {
( $( $elem:expr ),* ) => {
{
let mut v = Vec::new();
$( v.push($elem); )*
v
}
}
}
println!("{:?}", myvec![3, 4]);
24 / 47

Exercise! csv

  • Take a list of variable names (identifiers) and print them in CSV format.
    • One line, each element separated by commas.
macro_rules! csv {
// ...
}
25 / 47

Exercise! csv

  • Take a list of variable names (identifiers) and print them in CSV format.
    • One line, each element separated by commas.
macro_rules! csv {
// ...
}
  • There's no way to count the number of captures in a repetition...
26 / 47

Counting

  • But you can use a repetition twice in a macro expansion:
    • Once to generate the format string
    • Once to insert arguments
  • Or you can iteratively call print!, then print a newline at the end.
27 / 47

Counting

  • You can try to count repetition matches by generating an arithmetic expression:
macro_rules! replace_expr {
($_t:tt $sub:expr) => {$sub};
}
macro_rules! count_tts {
($($tts:tt)*) => {0 $(+ replace_expr!($tts 1))*};
}
  • You need replace_expr! because you can't expand a repetition match without invoking the repeating variable.
  • This works, but only up to values of 500 or so...
  • This expands to the token stream 0 + 1 + ... + 1, which must be parsed into an AST.
28 / 47

Counting

macro_rules! count_tts {
() => {0usize};
($_head:tt $($tail:tt)*) => {1usize + count_tts!($($tail)*)};
}
  • Rust allows macro recursion (or nested macros)
  • The compiler will keep expanding macros until there are none left in the AST (or the recursion limit is hit).
  • The compiler's recursion limit can be changed with #![recursion_limit="64"].
    • 64 is the default.
    • This applies to all recursive compiler operations, including auto-dereferencing and macro expansion.
29 / 47

Counting

  • The fastest way is to count by creating an array literal, and evaluating len on it.
  • Because of the way this is parsed, it doesn't create an unbalanced AST like the arithmetic expression does.
  • Tested to work with about 10k tokens.
30 / 47

Matching

  • Macro rules are matched in order.
  • The parser can never backtrack. Say we have:

    macro_rules! dead_rule {
    ($e:expr) => { ... };
    ($i:ident +) => { ... };
    }
  • If we call it as dead_rule(x +);, it will actually fail.

    • x + isn't a valid expression, so we might think it would fail on the first match and then try again on the second.
    • This doesn't happen!
    • Instead, since it starts out looking like an expression, it commits to that match case.
      • When it turns out not to work, it can't backtrack on what it's parsed already, to try again. Instead it just fails.
31 / 47

Matching

  • To solve this, we need to put more specific rules first:

    macro_rules! dead_rule {
    ($i:ident +) => { ... };
    ($e:expr) => { ... };
    }
  • Now, when we call dead_rule!(x +);, the first case will match.

  • If we called dead_rule!(x + 2);, we can now fall through to the second case.
    • Why does this work?
    • Because if we've seen $i:ident +, the parser already knows that this looks like the beginning of an expression, so it can fall through to the second case.
32 / 47

Macro Hygiene

  • In C, we talked about how a macro can implicitly use (or conflict) with an identifier name in the calling context (#define BAZ a).

  • Rust macros are partially hygenic.

    • Hygenic with regard to most identifiers.
      • These identifiers get a special context internal to the macro expansion.
    • NOT hygenic: generic types (<T>), lifetime parameters (<'a>).
    macro_rules! using_a {
    ($e:expr) => { { let a = 42; $e } }
    } // Note extra braces ^ ^
    let four = using_a!(a / 10); // this won't compile - nice!
    • We can imagine that this expands to something like:
    let four = { let using_a_1232424_a = 42; a / 10 };
33 / 47

Macro Hygiene

  • But if we want to bind a new variable, it's possible.

    • If a token comes in as an input to the function, then it is part of the caller's context, not the macro's context.
    macro_rules! using_a {
    ($a:ident, $e:expr) => { { let $a = 42; $e } }
    } // Note extra braces ^ ^
    let four = using_a!(a, a / 10); // compiles!
    • This expands to:
    let four = { let a = 42; a / 10 };
34 / 47

Macro Hygiene

  • It's also possible to create identifiers that will be visible outside of the macro call.

    • This won't work due to hygiene:
    macro_rules! let_four {
    () => { let four = 4; }
    } // ^ No extra braces
    let_four!();
    println!("{}", four); // `four` not declared
    • But this will:
    macro_rules! let_four {
    ($i:ident) => { let $i = 4; }
    } // ^ No extra braces
    let_four!(myfour);
    println!("{}", myfour); // works!
35 / 47

Macro Debugging

  • Rust has an unstable feature for debugging macro expansion.

    • Especially recursive macro expansions.
    #![feature(trace_macros)]
    macro_rules! each_tt {
    () => {};
    ( $_tt:tt $($rest:tt)* ) => { each_tt!( $($rest)* ); };
    }
    trace_macros!(true);
    each_tt!(spim wak plee whum);
    trace_macros!(false);
    • This will cause the compiler to print:
    each_tt! { spim wak plee whum }
    each_tt! { wak plee whum }
    each_tt! { plee whum }
    each_tt! { whum }
    each_tt! { }
  • More tips on macro debugging in TLBORM 2.3.4

36 / 47

Macro Scoping

  • Macro scoping is unlike everything else in Rust.

    • Macros are immediately visible in submodules:
    macro_rules! X { () => {}; }
    mod a { // Or `mod a` could be in `a.rs`.
    X!(); // valid
    }
    • Macros are only defined after they appear in a module:
    mod a { /* X! undefined here */ }
    mod b {
    /* X! undefined here */
    macro_rules! X { () => {}; }
    X!(); // valid
    }
    mod c { /* X! undefined */ } // They don't leak between mods.
37 / 47

Macro Scoping

  • Macros can be exported from modules:

    #[macro_use] // outside of the module definition
    mod b {
    macro_rules! X { () => {}; }
    }
    mod c {
    X!(); // valid
    }
    • Or from crates, using #[macro_export] in the crate.
38 / 47

Macro Callbacks

  • Because of the way macros are expanded, "obviously correct" macro invocations like this won't actually work:

    macro_rules! expand_to_larch {
    () => { larch };
    }
    macro_rules! recognise_tree {
    (larch) => { println!("larch") };
    (redwood) => { println!("redwood") };
    ($($other:tt)*) => { println!("dunno??") };
    }
    recognise_tree!(expand_to_larch!());
    • This will be expanded like so:
    -> recognize_tree!{ expand_to_larch ! ( ) };
    -> println!("dunno??");
    • Which will match the third pattern, not the first.
39 / 47

Macro Callbacks

  • This can make it hard to split a macro into several parts.

    • This isn't always a problem - expand_to_larch ! ( ) won't match an ident, but it will match an expr.
  • The problem can be worked around by using a callback pattern:

    macro_rules! call_with_larch {
    ($callback:ident) => { $callback!(larch) };
    }
    call_with_larch!(recognize_tree);
    • This expands like this:
    -> call_with_larch! { recognise_tree }
    -> recognise_tree! { larch }
    -> println!("larch");
40 / 47

Macro TT Munchers

  • This is one of the most powerful and useful macro design patterns. It allows for parsing fairly complex grammars.

  • A tt muncher is a macro which matches a bit at the beginning of its input, then recurses on the remainder of the input.

    • ( $some_stuff:expr $( $tail:tt )* ) =>
    • Usually needed for any kind of actual language grammar.
    • Can only match against literals and grammar constructs which can be captured by macro_rules!.
    • Cannot match unbalanced groups.
41 / 47

Macro TT Munchers

macro_rules! mixed_rules {
() => {}; // Base case
(trace $name:ident ; $( $tail:tt )*) => {
{
println!(concat!(stringify!($name), " = {:?}"), $name);
mixed_rules!($($tail)*); // Recurse on the tail of the input
}
};
(trace $name:ident = $init:expr ; $( $tail:tt )*) => {
{
let $name = $init;
println!(concat!(stringify!($name), " = {:?}"), $name);
mixed_rules!($($tail)*); // Recurse on the tail of the input
}
};
}
42 / 47

Macros Rule! Mostly!

  • Macros are pretty great - but not perfect.
    • Macro hygiene isn't perfect.
    • The scope of where you can use a macro is weird.
    • Handling crates inside of exported macros is weird.
    • It's impossible to construct entirely new identifiers (e.g. by concatenating two other identifiers).
    • ...
  • A new, incompatible macro system may appear in future Rust.
    • This would be a new syntax for writing syntax extensions.
43 / 47

Rust Macros from the Bottom Up

44 / 47

Macros 1.1

  • Procedural macros!
  • In work for a long time.
  • Pushed by demand from major crates like Serde.
45 / 47

Procedural Macros

  • Procedural macros let you execute code during compilation.
    • Write functions that take token streams and output token streams.
    • Of the type proc_macro::TokenStream
  • Regular macros use pattern matching only.
  • This already existed in the form of (nightly-only) syntax extensions.
  • Macros 1.0 has an updated interface
    • tokens tream sonly, no interaction with the AST
46 / 47

Custom Derive

  • Allow you to write derive traits.
  • For a trait Foo:
    • Write a function fn(TokenStream) -> TokenStream with an attribute

      [proc_macro_derive(Foo)]

  • Already implemented in Serde!
47 / 47

What Are Macros?

  • In C, a macro looks like this:

    #define FOO 10 // untyped integral constant
    #define SUB(x, y) ((x) - (y)) // parentheses are important!
    #define BAZ a // relies on there being an `a` in context!
    int a = FOO;
    short b = FOO;
    int c = -SUB(2, 3 + 4);
    int d = BAZ;
  • Before compilation, a preprocessor runs which directly substitutes tokens:

    int a = 10; // = 10
    short b = 10; // = 10
    int c = -((2) - (3 + 4)); // = -(2 - 7) = 5
    int d = a; // = 10
2 / 47
Paused

Help

Keyboard shortcuts

, , Pg Up, k Go to previous slide
, , Pg Dn, Space, j Go to next slide
Home Go to first slide
End Go to last slide
b / m / f Toggle blackout / mirrored / fullscreen mode
c Clone slideshow
p Toggle presenter mode
t Restart the presentation timer
?, h Toggle this help
Esc Back to slideshow
